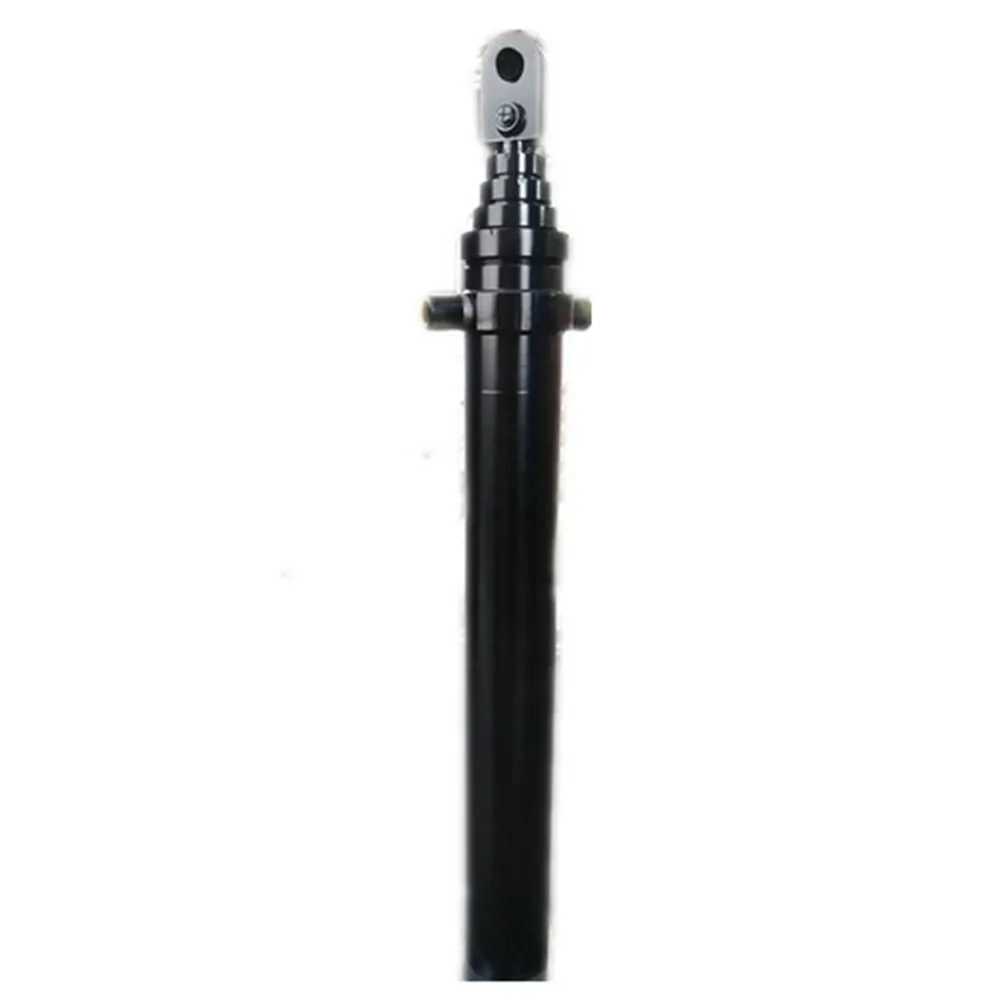

Stróc 166.75 Dúnta 56.25 Pionna slat 2 Leithead slaite 2 Pionna Bonn 2 LMSD 7 Céimeanna 4 Stróc 166 Leathnaithe 405
Líon na gCéimeanna 4
Trastomhas céim is mó ag gluaiseacht 7 n -orlach
Fad stróc (a) 166.06 in (4218 mm)
Fad dúnta (b) 56.25 in (1429 mm)
Fad sínte (c) 222.31 in (5647 mm)
Leithead mount slat (d) 2 in (51 mm)
Poll bioráin mount slat (E) 2.06 in (52 mm)
Leithead an Mhóta Base (g) 8.63 in (219 mm)
POLE PIN MOUNT BASE (J) 2.13 in (54 mm)
Calafort (l) 1 "nptf
Galún ola (siar) 3.7
Galún ola (sínte) 17.5
